Commercial Garage Doors in Texas

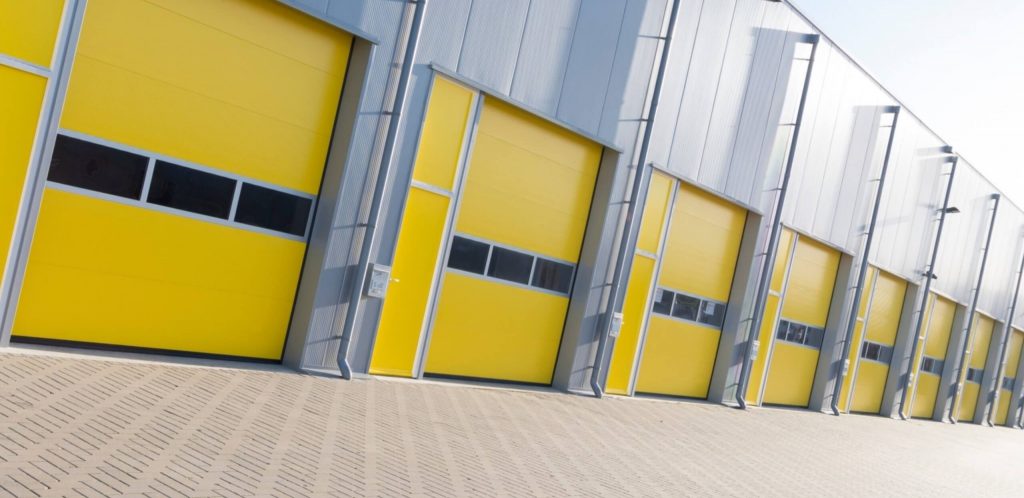

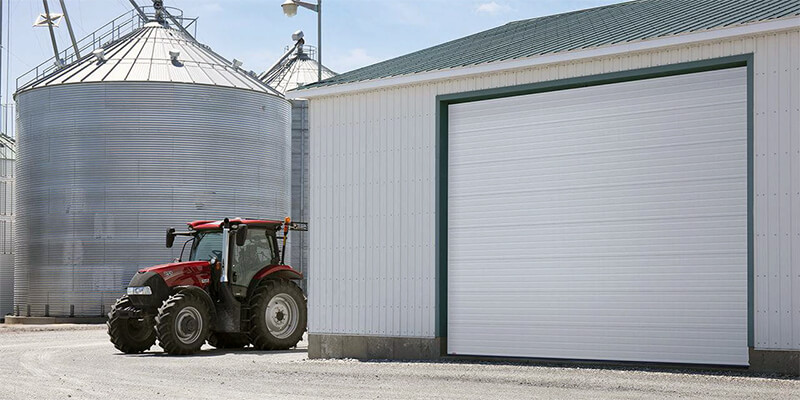

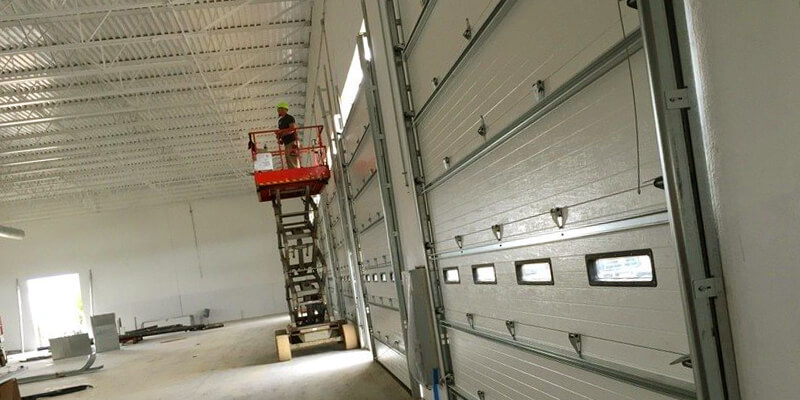

Commercial sectional doors are constructed using large, individual panels that track upward and store flat against the facility ceiling; they offer exceptional thermal insulation and window integration. Rolling steel doors consist of interlocking corrugated steel slats that travel straight up and wrap into a compact coil enclosure directly above the opening, providing superior industrial strength and maximum space conservation.

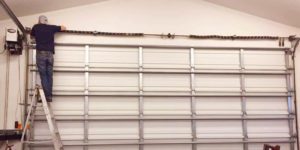

Standard overhead doors typically feature torsion springs engineered for 10,000 to 15,000 cycles. For high-traffic distribution hubs or logistics centers, facilities require custom high-cycle springs calibrated for 25,000, 50,000, or even 100,000 lifecycles. Engineers calculate these assemblies by expanding the spring's physical wire diameter and increasing its overall coil length to redistribute physical mechanical stress.

A commercial operator motor that hums but fails to raise the door suggests that either a high-tension torsion spring has sheared completely or a severe tracking blockage is binding the physical framework. Commercial doors weigh hundreds of pounds; if the counterbalance system breaks, the automatic motor operator is physically overloaded. Turn off power immediately to avoid stripping internal drive gears.

Under federal mandate UL 325, motorized commercial entry systems must feature continuous safety sensing devices. This standard is met using industrial pneumatic or electronic safety edges along the bottom rubber weather seal (which reverses the system upon physical contact) or NEMA-rated heavy-duty infrared photo-eyes projecting an optical beam across the path.

High-R-value doors feature multi-layer panel structures injected with high-density polyurethane insulation cores. This creates a thermal barrier that preserves indoor climate zones for cold storage centers, food warehouses, and manufacturing plants. Beyond massive utility savings, insulated doors feature heavy-gauge interior and exterior steel jackets that increase rigidity against forklift impacts.

Yes. If a forklift dents a few slats on a rolling steel security curtain or a delivery vehicle backs into the bottom panel of a sectional overhead assembly, you do not need to replace the entire system. Technicians can slide out individual deformed metal slats or drop in a matching section panel while keeping the existing heavy-duty shaft, track lines, and motor drive systems completely intact.

Trolley operators mount directly above the center of the door track assembly and use a horizontal rail system to draw sectional doors backward; they are ideal for standard lift tracks. Jackshaft (wall-mount) operators mount directly to the wall on either side of the horizontal torsion shaft, driving the door via sprocket chain connections. Jackshaft operators are required for high-lift tracks, vertical-lift configurations, or rolling steel assemblies.

A wind-load rating dictates the specific negative and positive structural pressure limits an overhead entrance can safely withstand during extreme weather events without buckling. Coastal distribution yards, open-country manufacturing plants, and high-wind zones require reinforced commercial doors outfitted with high-strength structural steel strut bands, heavier roller guides, and deep-pocket tracking channels.

OSHA guidelines and industrial best practices dictate that commercial garage doors should undergo a comprehensive, multi-point preventative maintenance inspection every 3 to 6 months, depending on daily traffic volumes. Routine maintenance includes auditing lifting cables for metal frays, balancing internal spring torque, tightening loose structural hinges, and running diagnostic loop tests on safety settings.

Yes. Most standard, well-balanced manual push-up or chain-hoist commercial doors can be easily retrofitted with a high-torque electric motor operator. A technician must audit the door's mechanical balance, match the motor's horsepower requirement to the dead weight of the system, modify the spring configuration if necessary, and properly integrate the required safety sensors.
