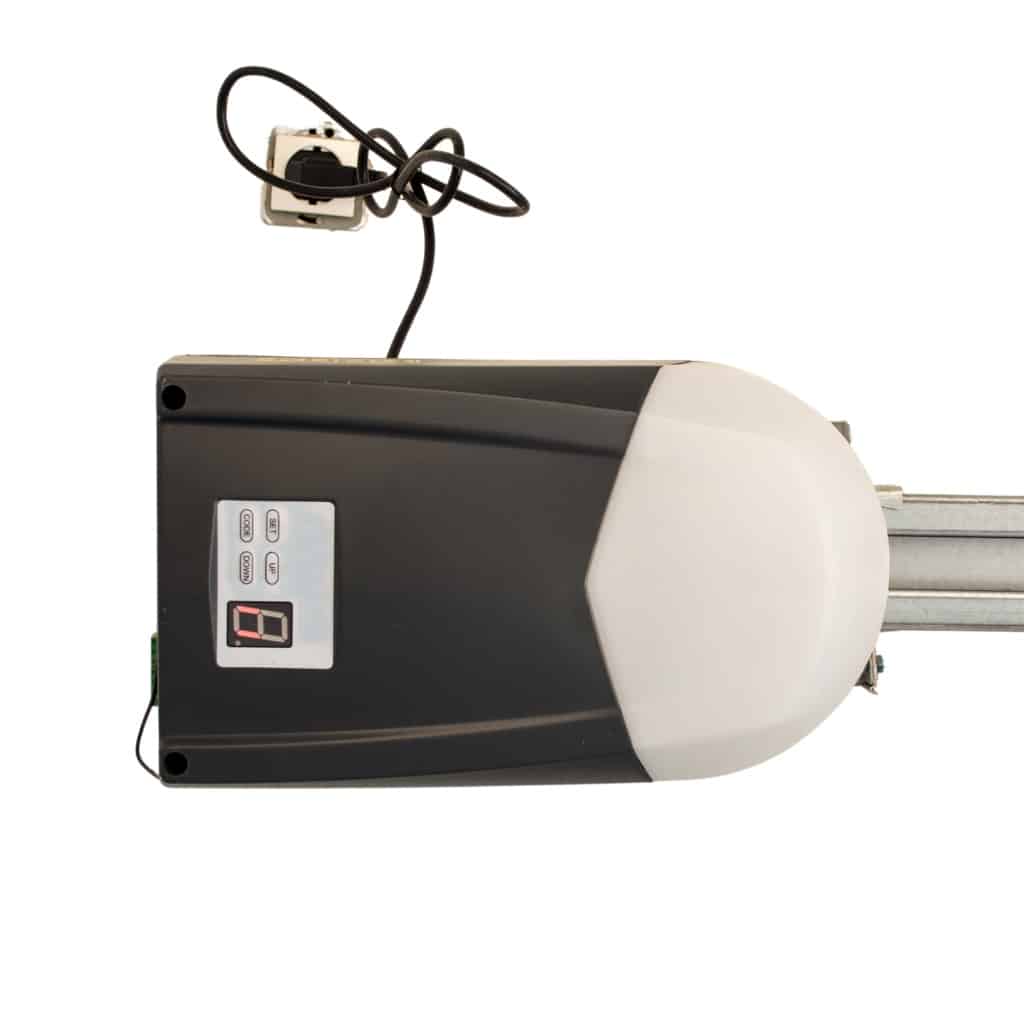

A garage door opener is a motorized device that automates the opening and closing of your garage door, providing convenience and security. It operates using a remote control or a wall switch, ensuring easy access to your garage.
The garage door opener is typically mounted on the ceiling of the garage, directly above the center of the garage door.

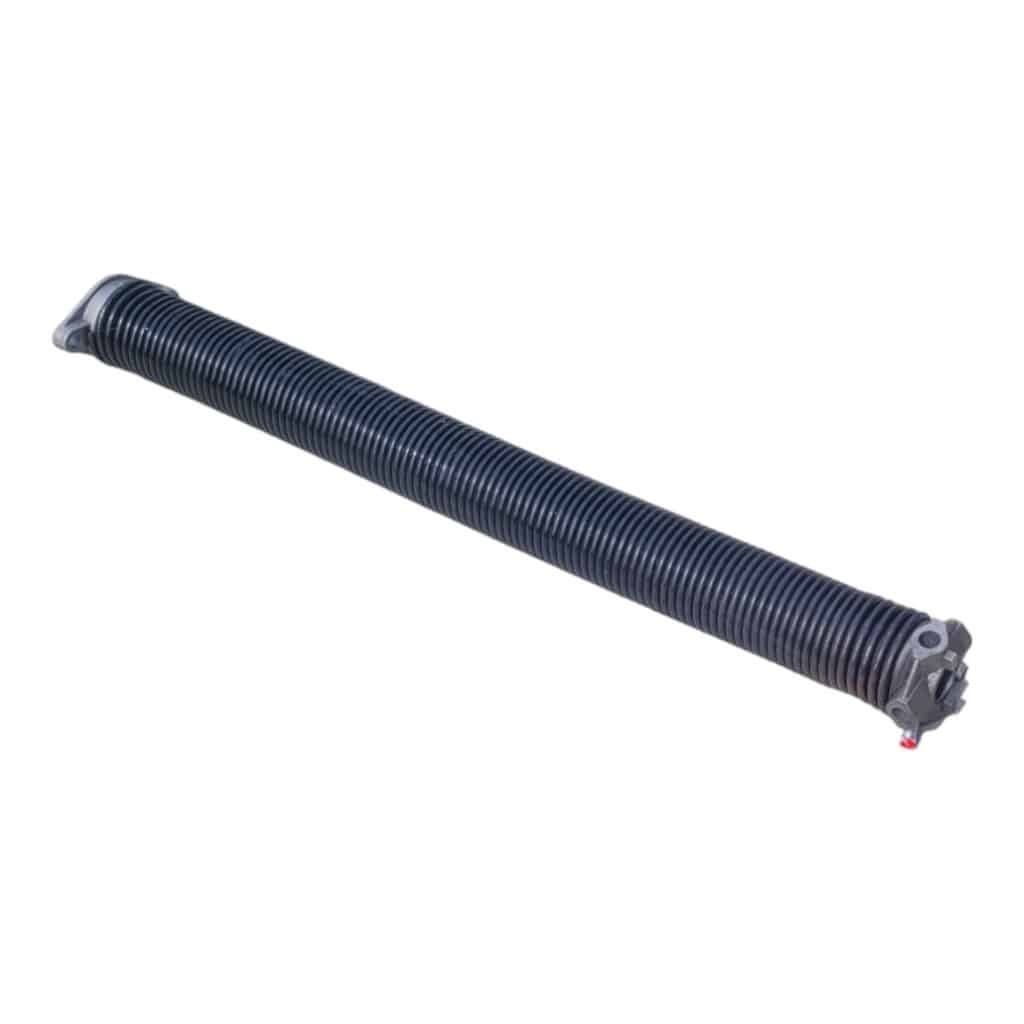

Torsion springs are essential components that balance the weight of the garage door, allowing it to open and close smoothly. They store mechanical energy and release it to lift the door.
Torsion springs are located above the garage door, mounted on a metal shaft parallel to the door.

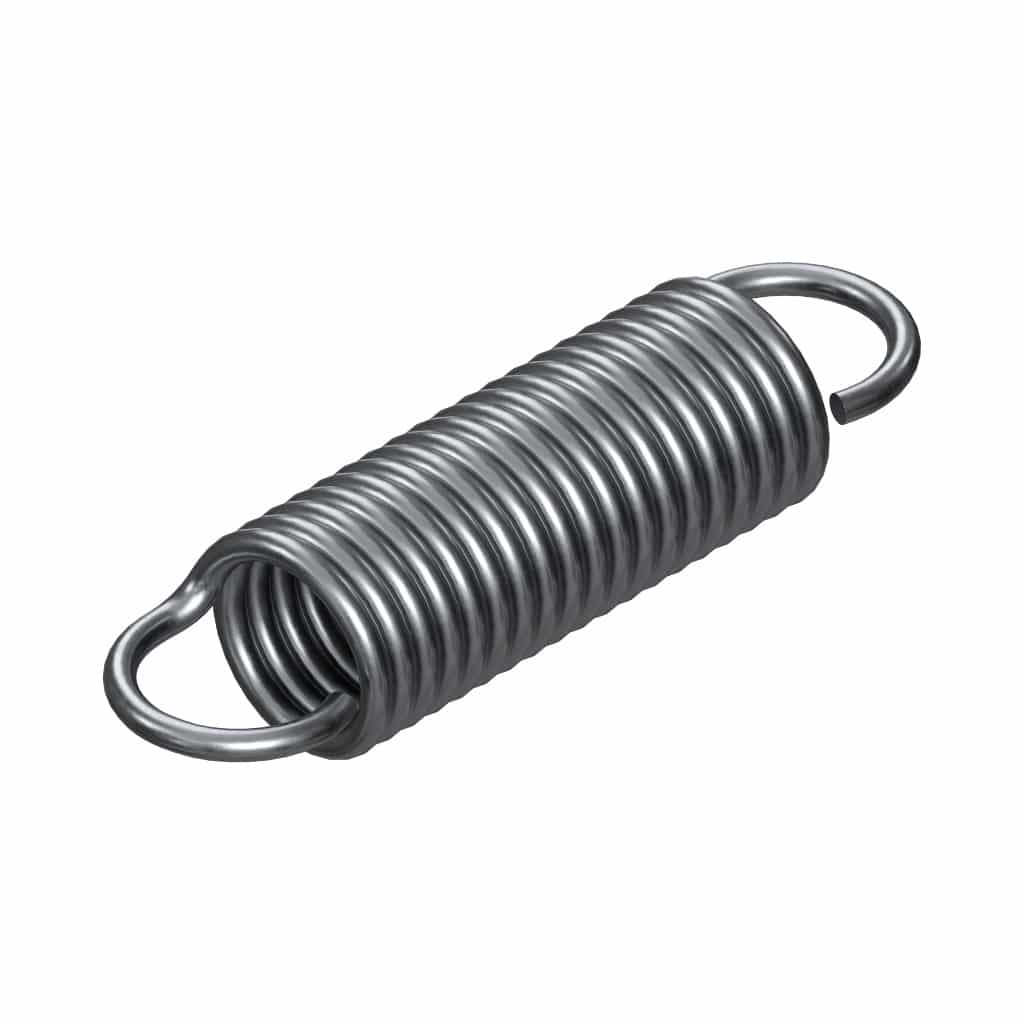

Extension springs stretch and contract to counterbalance the weight of the garage door, aiding in its smooth operation. They work by extending when the door is lowered and contracting when it is raised.
Extension springs are found on both sides of the garage door, running parallel to the horizontal tracks.

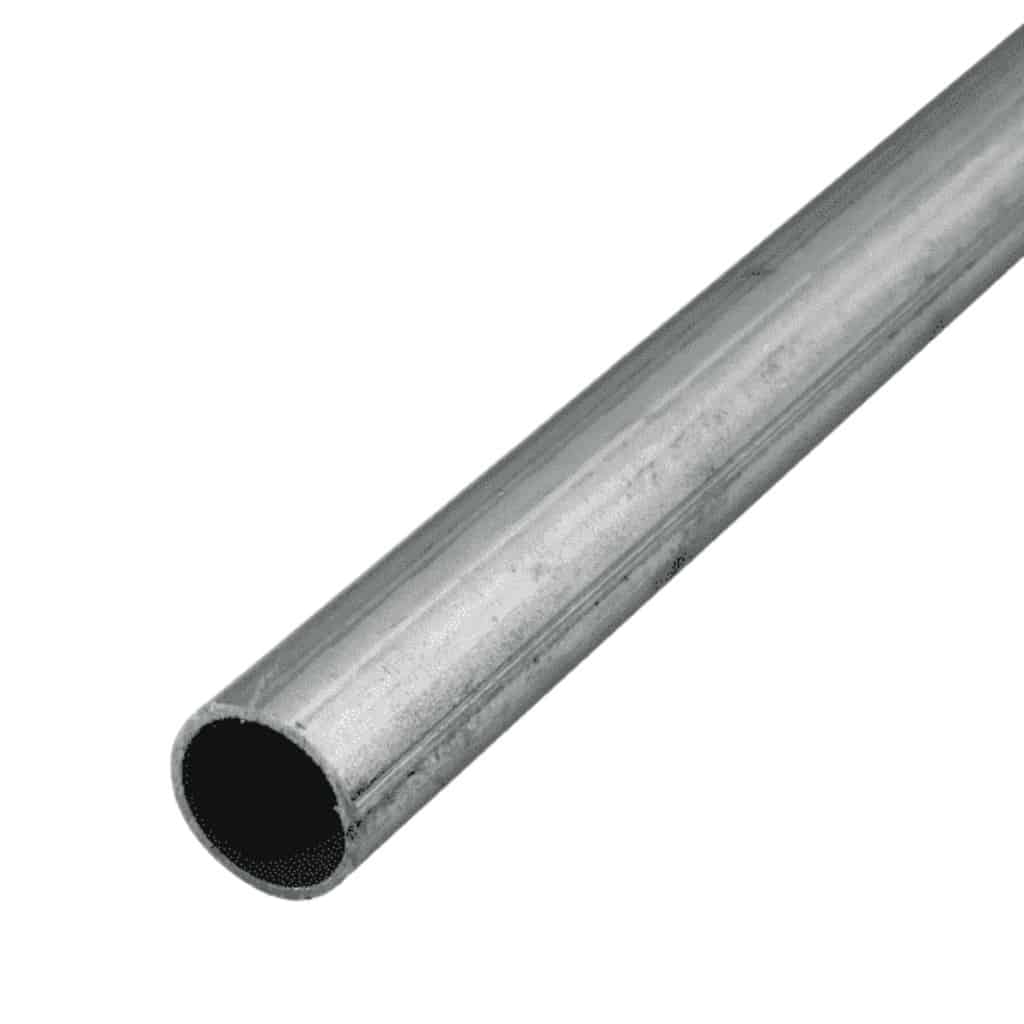

The torsion shaft is a metal rod that holds the torsion springs in place and helps distribute their tension evenly across the garage door. It rotates to wind and unwind the torsion springs.
The torsion shaft is mounted above the garage door, parallel to the door and supported by end bearing plates.
Garage door tracks guide the rollers and ensure the door moves up and down smoothly. They are crucial for the proper alignment and operation of the door.
Garage door tracks are located on both sides of the door, extending from the floor to the ceiling.

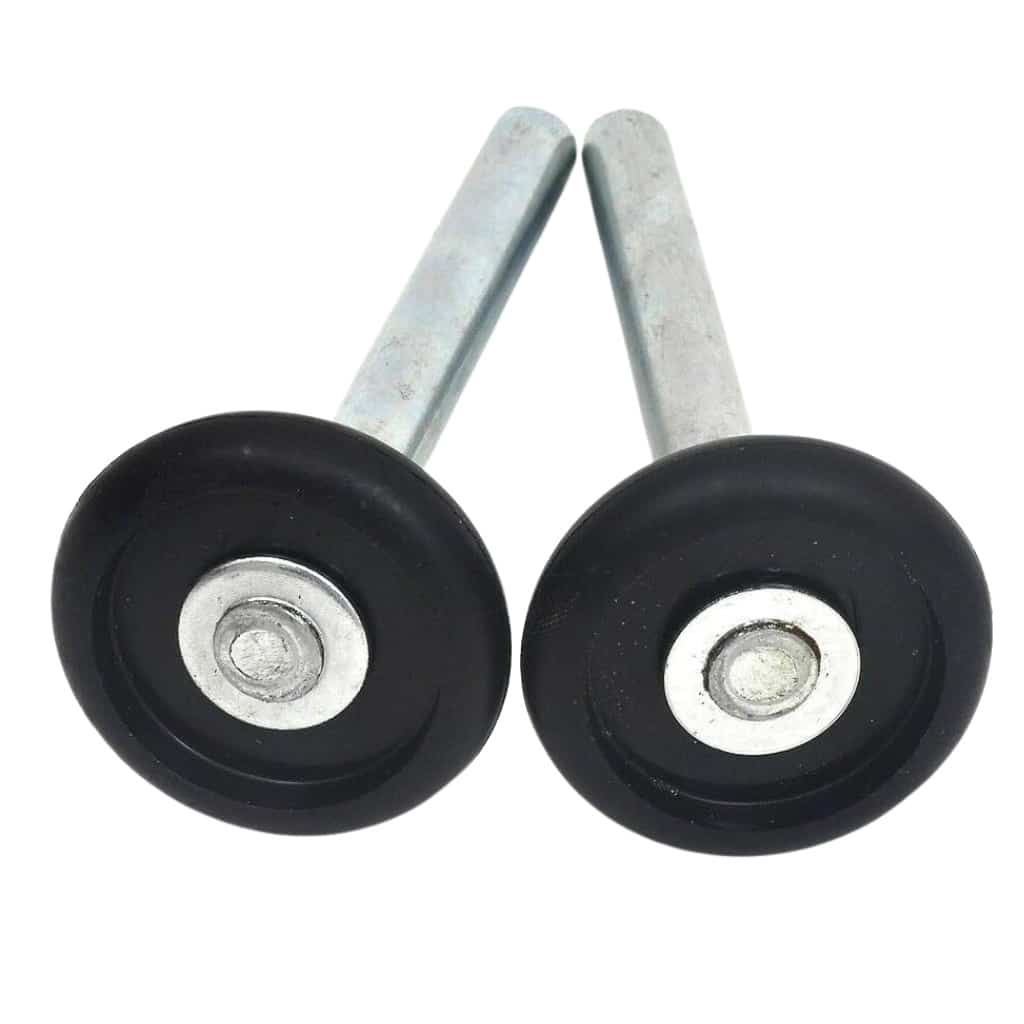

Rollers are small wheels that run along the garage door tracks, enabling the door to open and close smoothly. They reduce friction and wear on the door and tracks.
Rollers are attached to the door panels and move within the vertical and horizontal tracks.

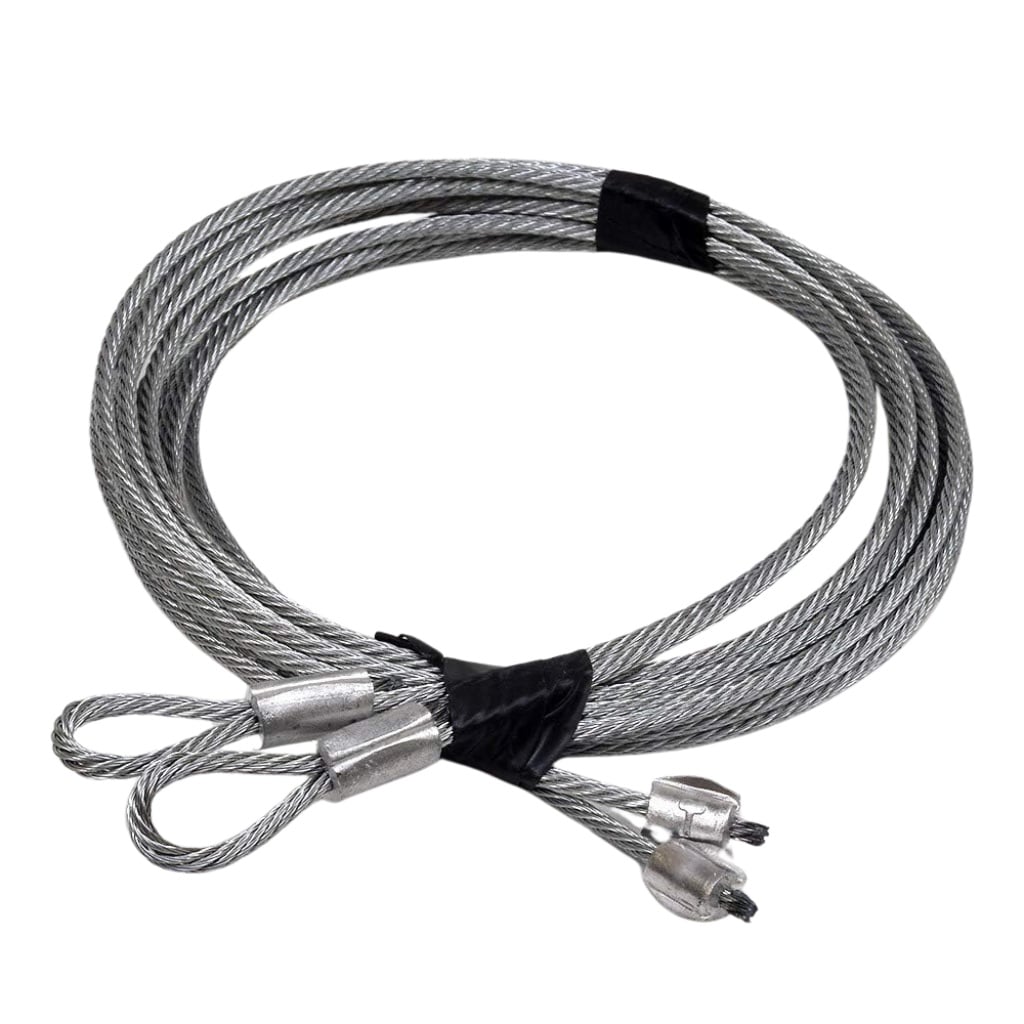

Garage door cables work in conjunction with the springs to lift and lower the door safely. They support the weight of the door and prevent it from crashing down.
The cables run along the sides of the door, attached to the bottom bracket and winding around the drums.

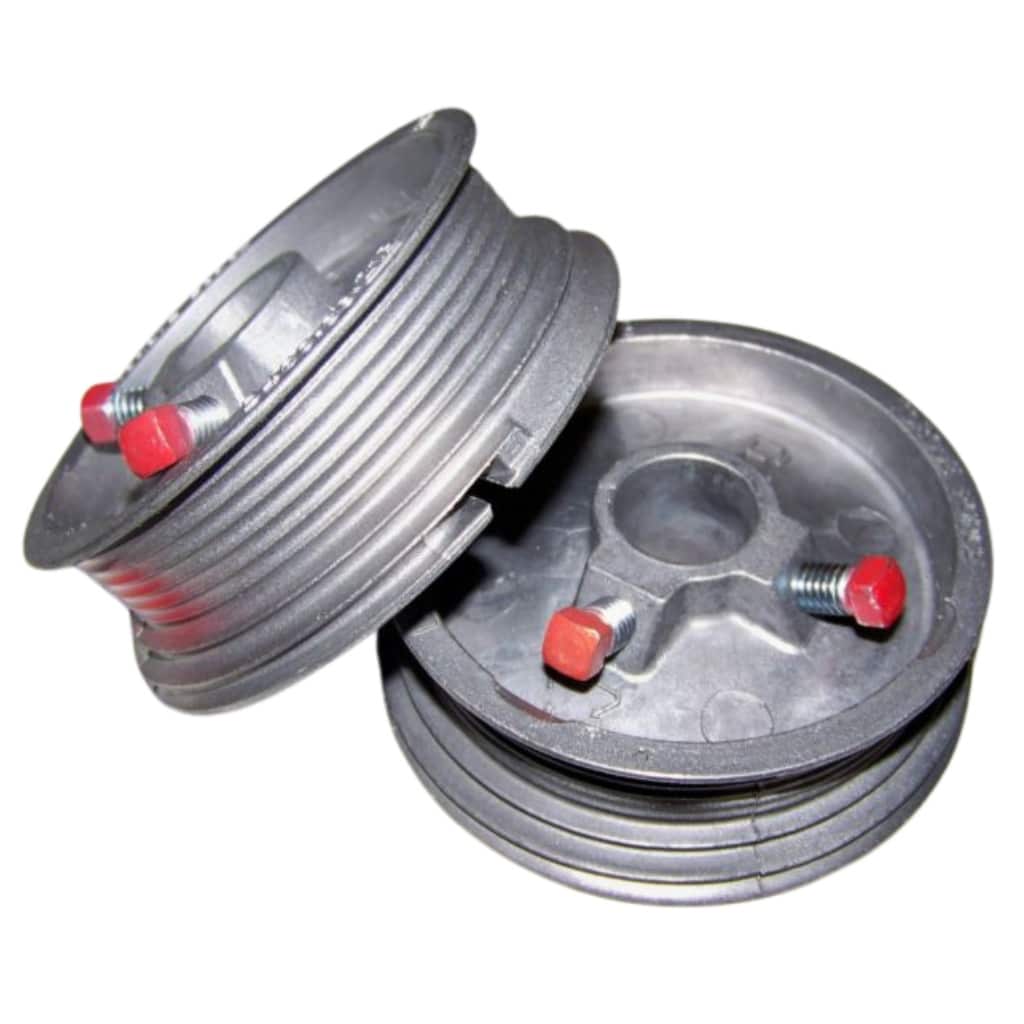

Drums are circular components that wind the garage door cables when the door is raised, ensuring the cables remain taut. They play a critical role in the door’s balance and operation.
Drums are mounted on the ends of the torsion shaft, above the garage door.

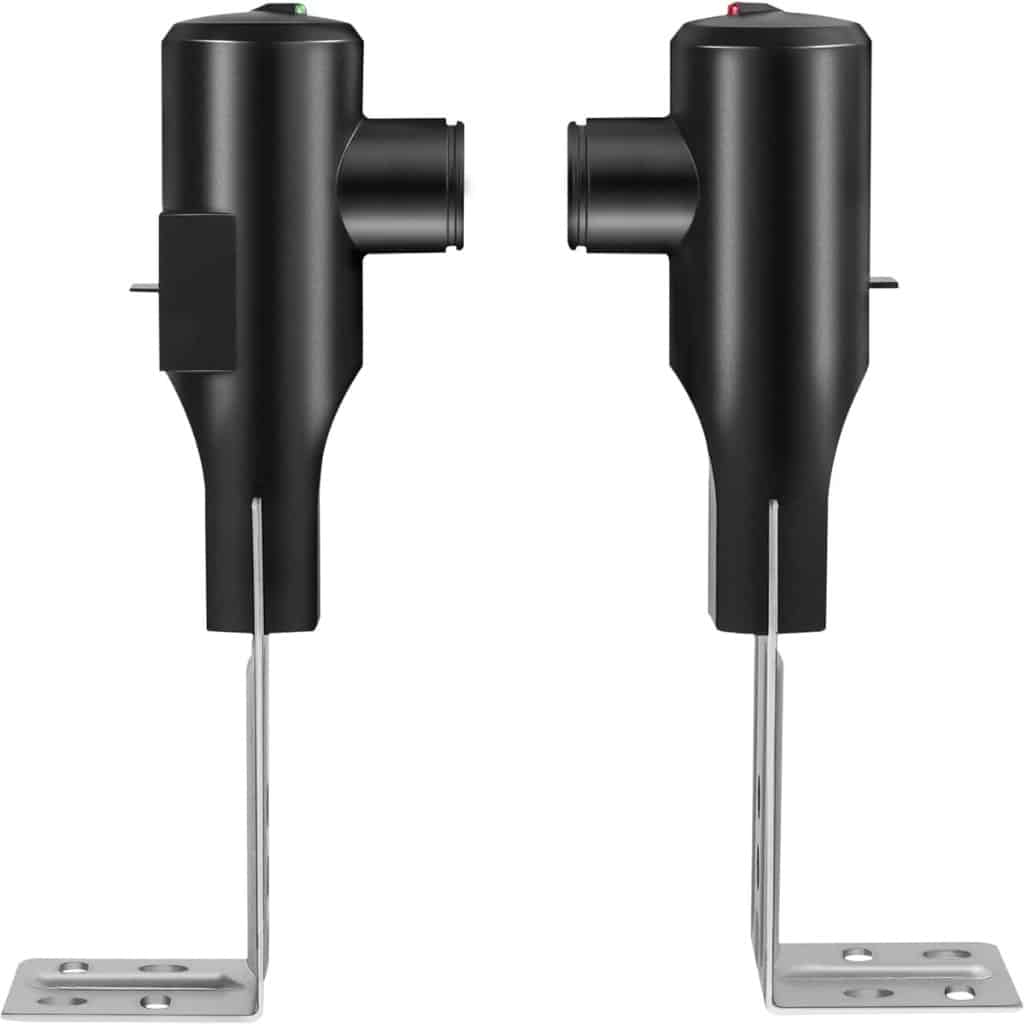

Safety sensors detect obstacles in the path of the garage door, preventing accidents by stopping or reversing the door if something is detected. They ensure safe operation.
Safety sensors are installed near the bottom of the door tracks, on either side of the garage door opening.

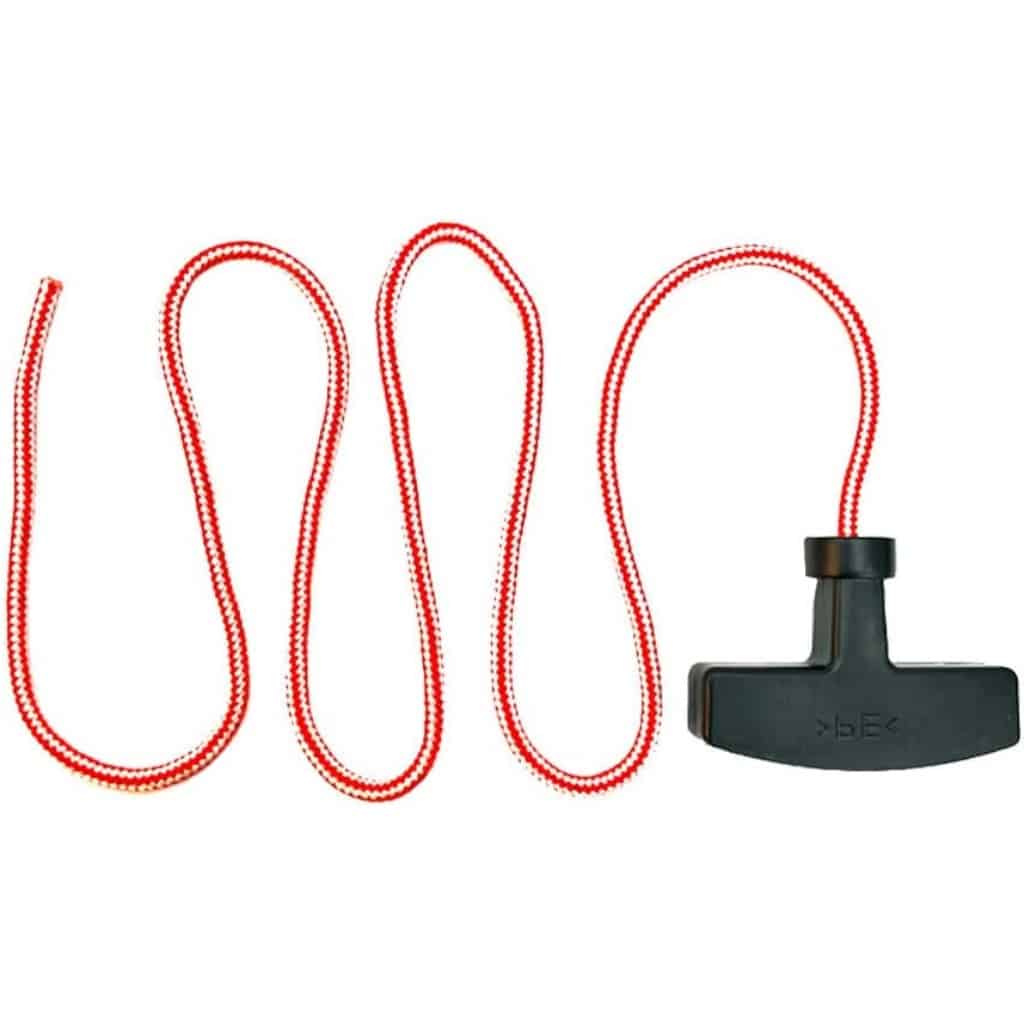

The emergency release cord allows you to manually open or close the garage door in case of a power outage or malfunction. It disengages the door from the opener.
The emergency release cord is attached to the garage door opener trolley and hangs down for easy access.

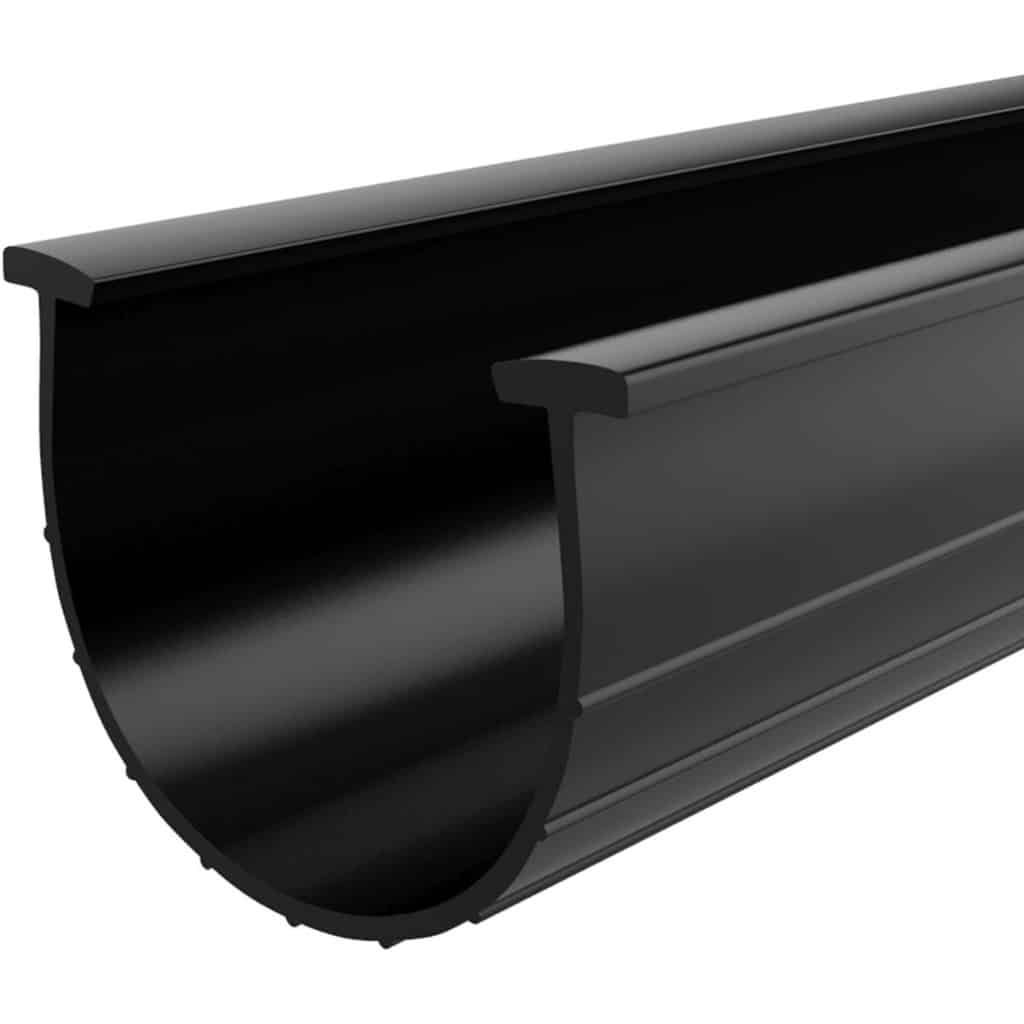

A weather seal prevents external elements like rain, wind, and debris from entering the garage, enhancing energy efficiency and protection. It seals gaps around the door.
Weather seals are installed along the bottom edge of the garage door and sometimes along the sides and top.

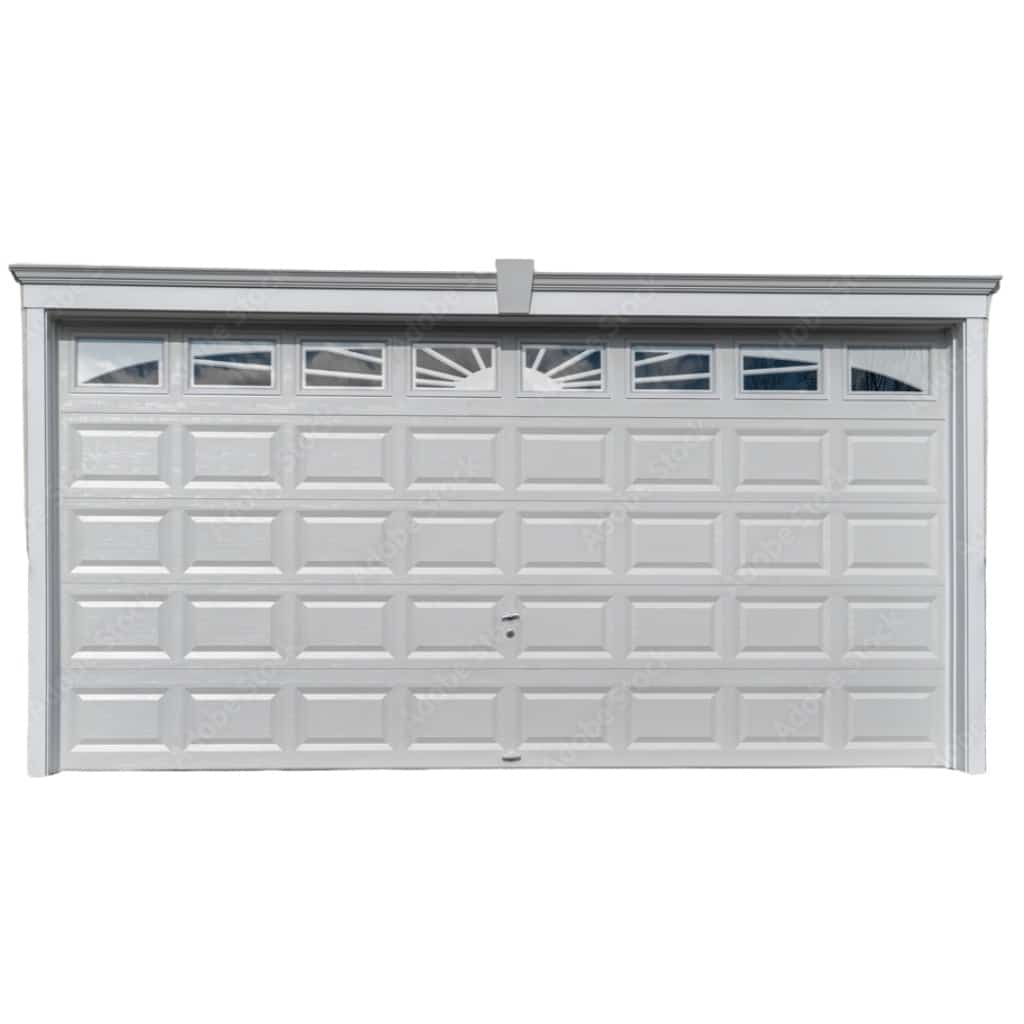

Garage door trim adds a finishing touch to the door’s appearance and helps seal gaps, improving the overall look and insulation of the garage.
Trim is typically installed around the perimeter of the garage door opening.

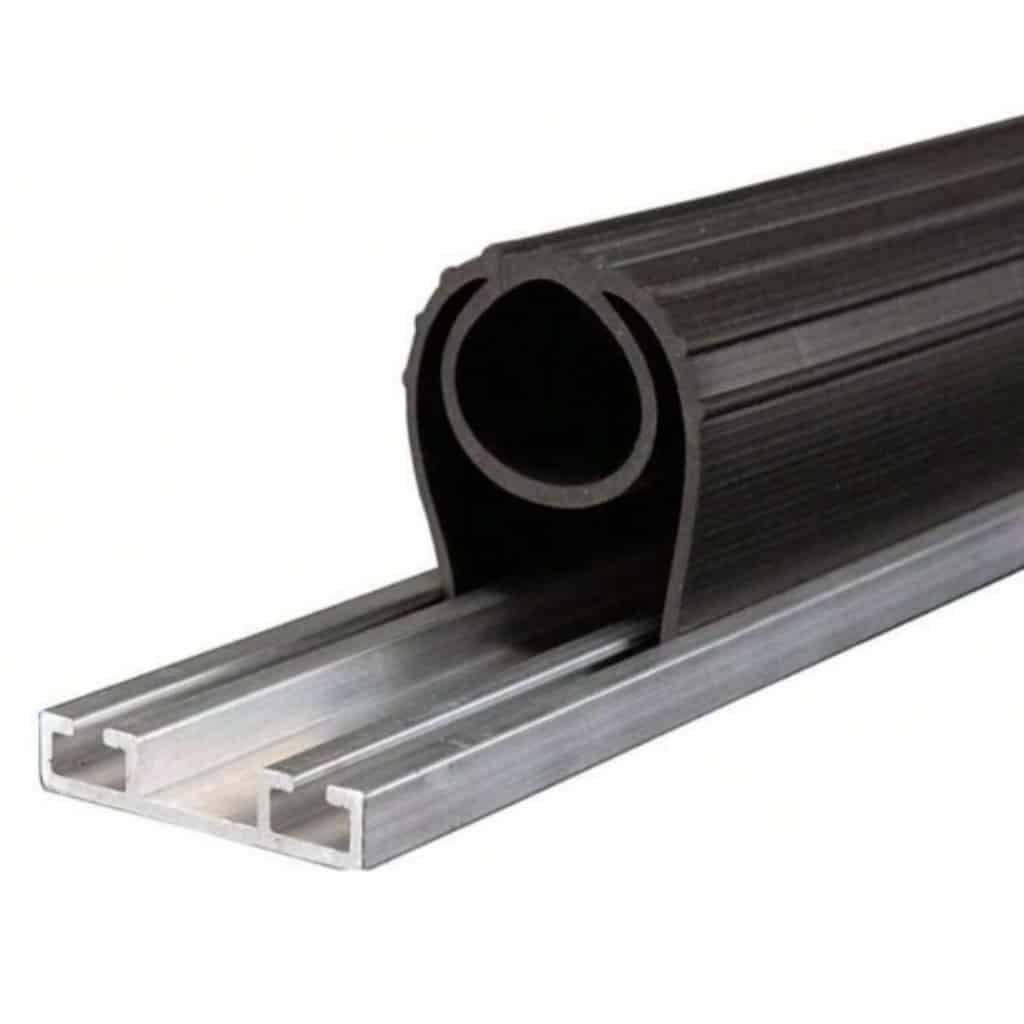

The bottom seal prevents dirt, water, and pests from entering the garage, ensuring a tight seal when the door is closed. It enhances insulation and protection.
The bottom seal is attached to the lower edge of the garage door.

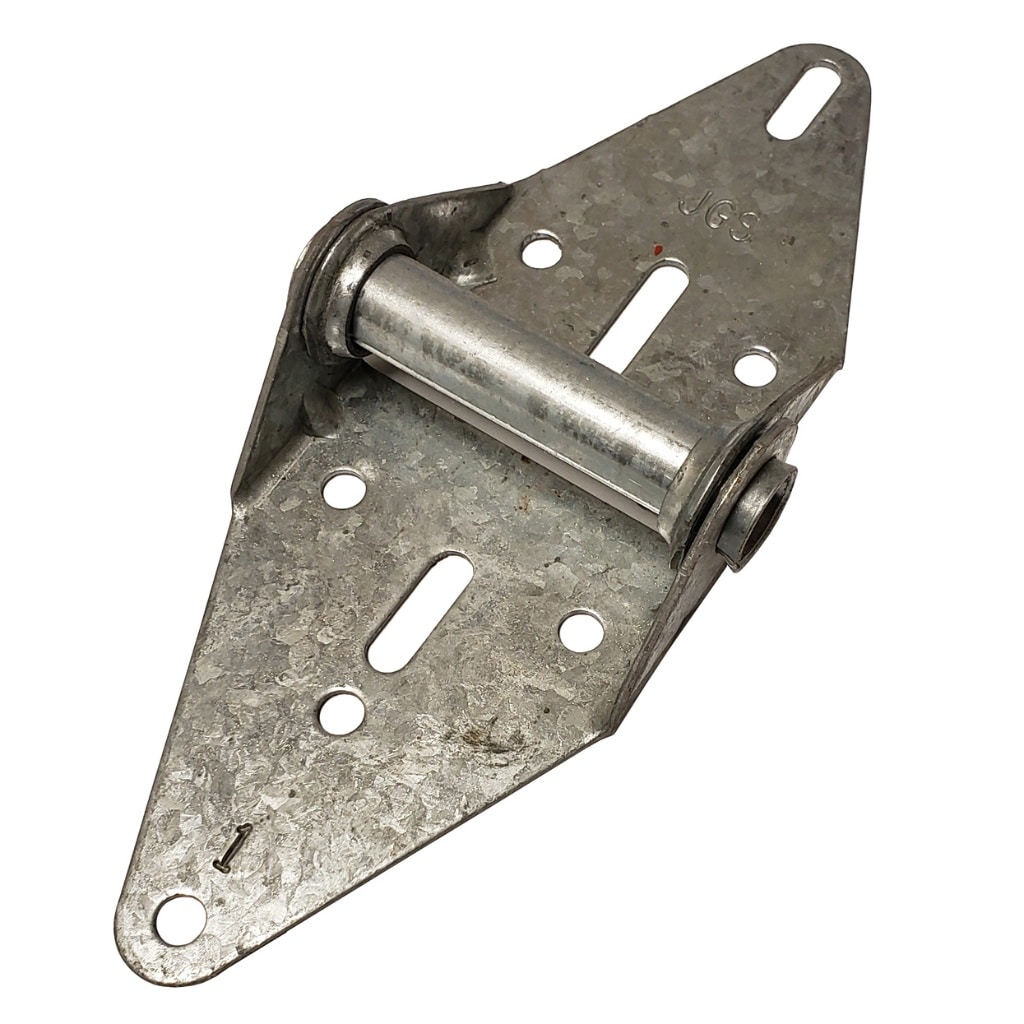

Hinges connect the individual panels of the garage door, allowing it to bend and follow the tracks when opening and closing. They provide structural support.
Hinges are located between each panel on the garage door, running vertically along the entire door.

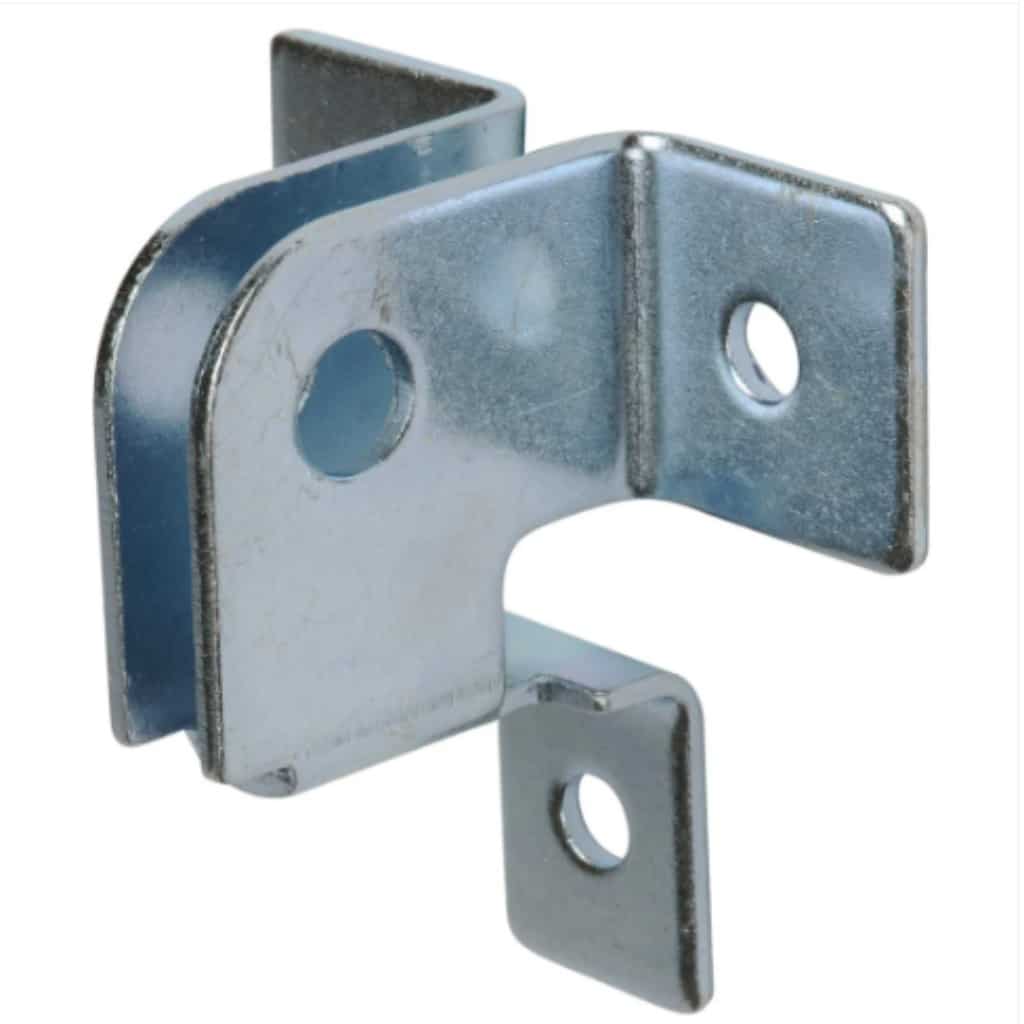

Brackets secure various components of the garage door system, including the tracks, springs, and cables, ensuring stability and proper alignment.
Brackets are installed at various points, such as the bottom of the door, along the tracks, and where the springs attach.

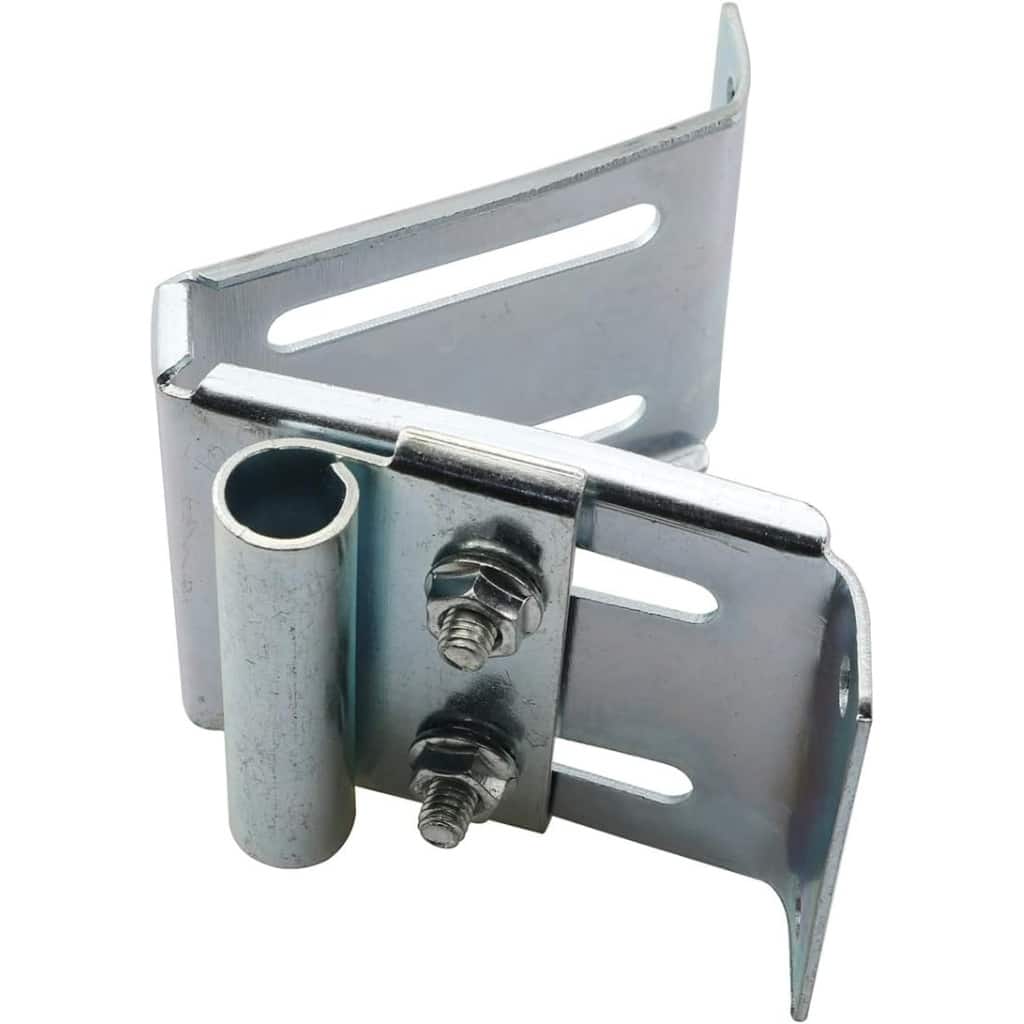

The roller bracket holds the rollers in place and attaches them to the garage door panels, ensuring smooth movement along the tracks. It is essential for the door’s stability and operation.
Roller brackets are located on the sides of the garage door, with each bracket holding a roller in the corresponding track.
Garage door panels form the main body of the door, providing structure and aesthetic appeal. They come in various materials and designs.
Panels are the visible sections of the door, connected by hinges and running vertically.

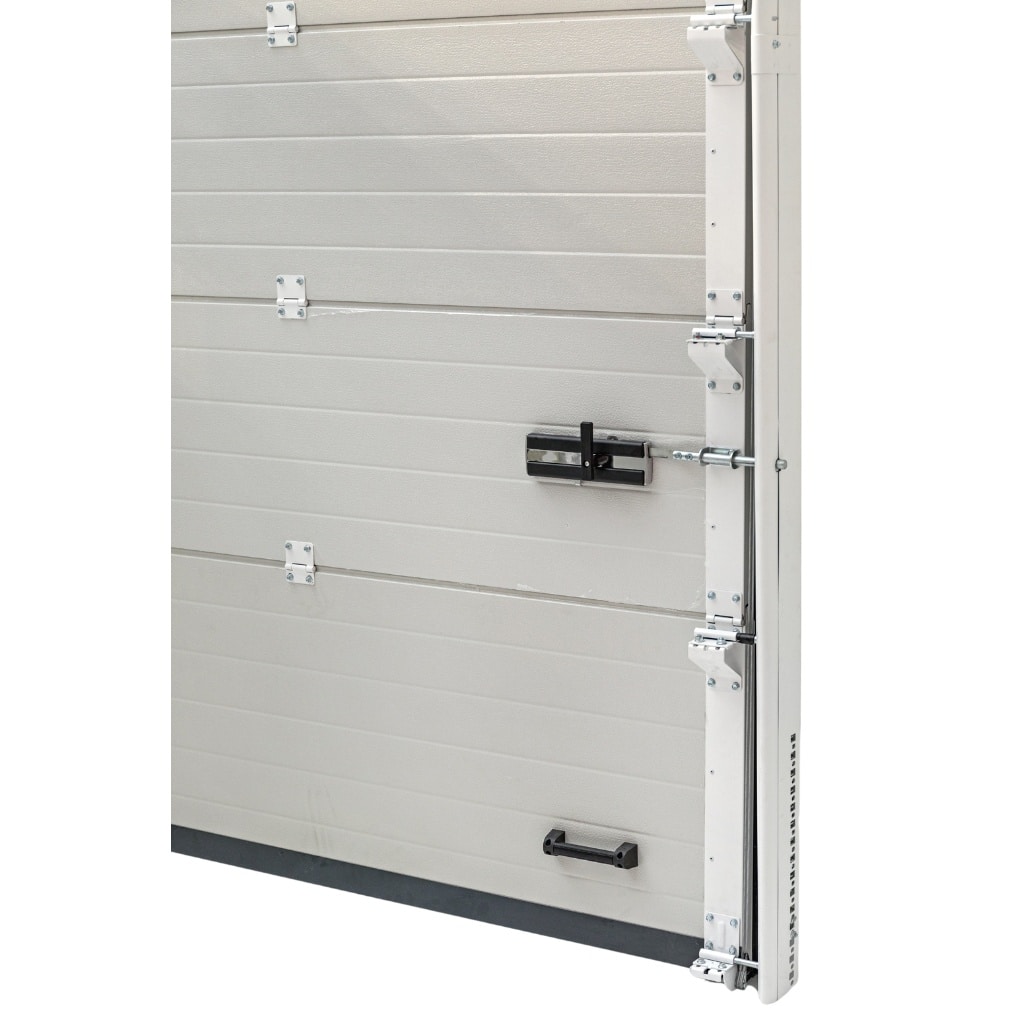

Garage door locks secure the door, preventing unauthorized access and enhancing security. T-locks are a common type, offering easy and effective locking.
Locks are usually installed on the interior side of the garage door, near the handle or at the bottom.
Window inserts add natural light and decorative elements to the garage door. They can improve the appearance and functionality of the door.
Window inserts are placed within the top panels of the garage door, allowing light to enter the garage.

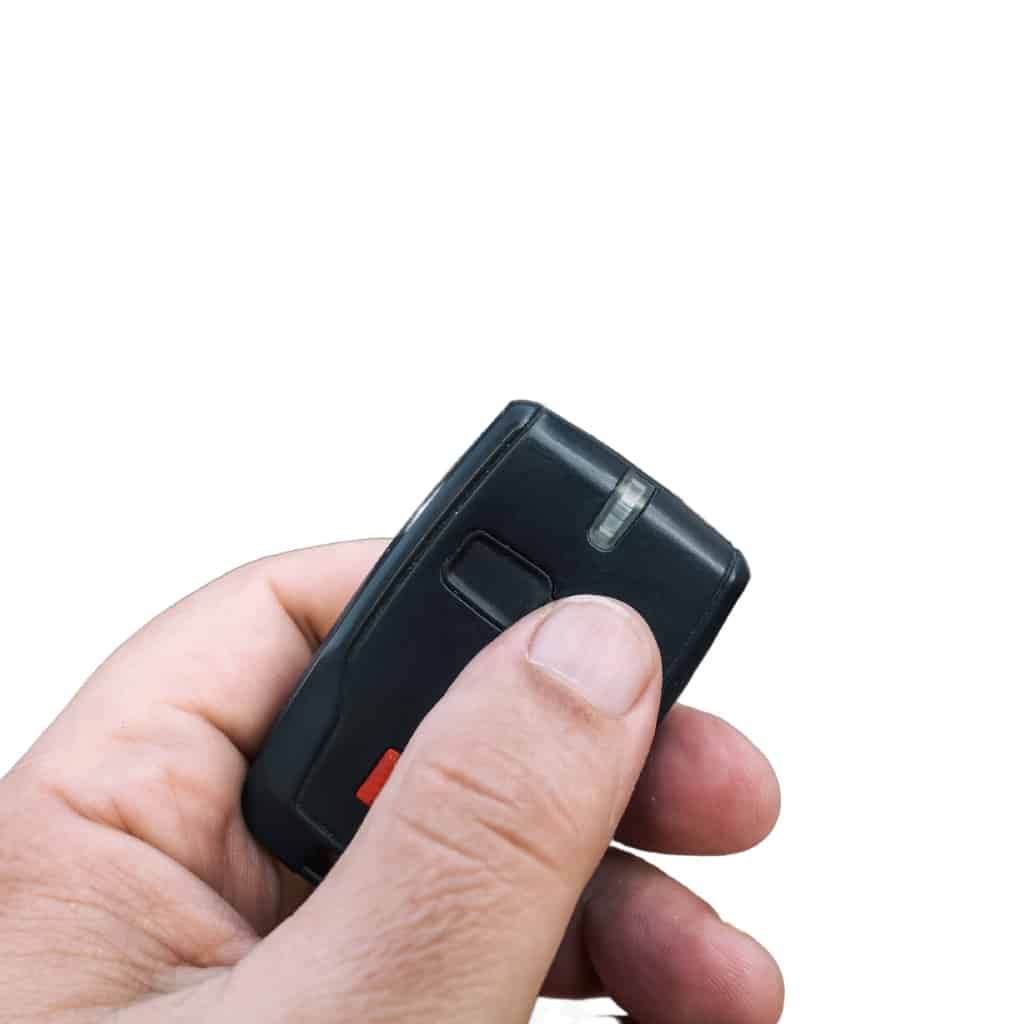

A garage door remote provides a convenient way to open and close your garage door from your vehicle. It communicates wirelessly with the garage door opener for seamless operation.
The remote is a portable device usually kept in your car or on a keychain for easy access.

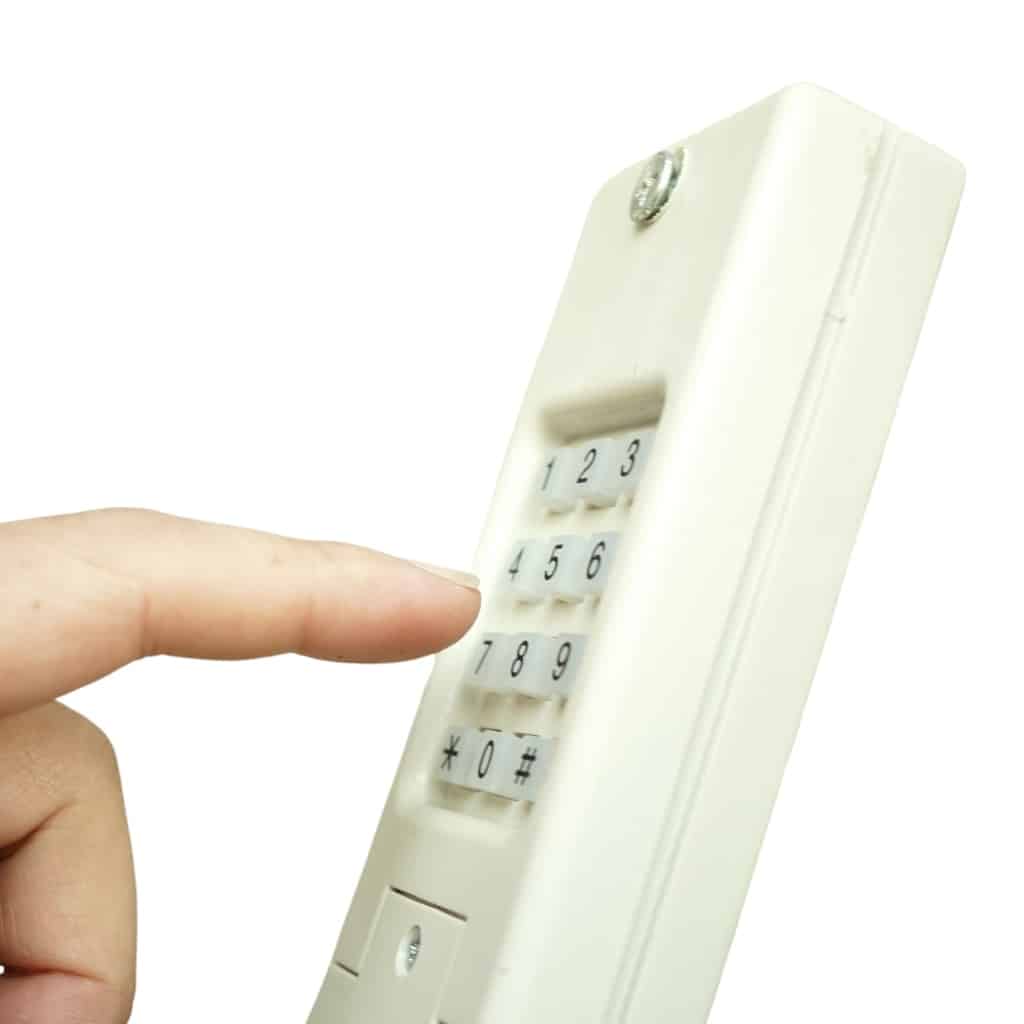

A garage door keypad allows for secure, keyless entry to your garage by entering a personalized code. It offers convenience and enhances security for your home.
The keypad is typically mounted on the exterior wall of the garage, near the garage door.
