The garage door tracks are the rails that guide your door from the floor to the ceiling. When they are plumb and parallel, your door floats effortlessly. When they are bent, loose, or misaligned, your door binds, squeals, or worse jumps off the track entirely. In Dallas, shifting foundations and accidental car bumps make track issues a common headache. This guide covers track alignment, how to identify track types, and why an off-track door is a dangerous emergency.
Anatomy of a Track System
Most residential doors use a two-part system. The Vertical Track is attached to the door jambs and guides the door straight up. The Horizontal Track curves back along the ceiling to hold the door when open. These are joined by a curved section (radius). The tracks are held in place by track brackets (or flags) and suspended from the ceiling by angle iron/punched angle.
Common Track Configurations
Not all tracks look the same. The configuration depends on your ceiling height and garage usage:
1. Standard Lift
The most common type found in residential homes. The horizontal track turns back almost immediately above the door header (typically 12 to 15 inches of headroom required). It balances cost and functionality for standard garages.
2. High-Lift Tracks
Ideal for garages with high ceilings. The vertical track extends further up the wall before curving back. This keeps the door closer to the ceiling, freeing up space for a car lift, tall SUV, or overhead storage. Requires a special drum and cable setup.
3. Low Headroom (Dual Track)
Used when there is very little space between the door header and the ceiling (under 10 inches). It often uses a double-track system: the top roller rides in a separate upper channel to turn the door quickly and reduce the arc.

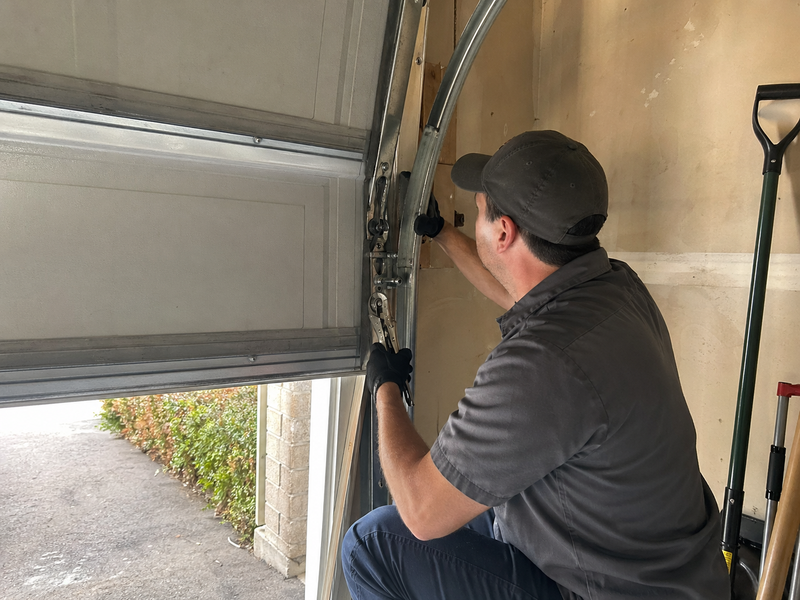

The “Garage Door Off Track” Emergency
A door coming off its tracks is one of the most dangerous garage situations. It typically happens because the door hit an obstruction, a cable snapped, or a track was hit by a car. Do not try to force the door back in yourself. The spring tension is still active, and the door is unstable. It can fall completely, causing severe injury or property damage. Call a pro immediately to secure the door and reset the rollers.
If you need to check if your tracks are the culprit for a stuck door, see our troubleshooting guide: Garage Door Won’t Close & Light Blinks
How to Check Track Alignment
You can visually inspect your tracks for issues. Stand inside the garage with the door closed. Look at the vertical tracks. They should be perfectly plumb (vertical) and parallel to the door panels. The gap between the roller stem and the track should be consistent from top to bottom. If the track bows inward or outward, it causes binding (drag) on the rollers.
DIY Maintenance: Tightening & Cleaning
While you should never adjust the bottom brackets or spring hardware, you can maintain the tracks:
- Tighten Track Bolts: Vibration loosens the nuts holding the track to the wall brackets. Check them annually with a socket wrench.
- Clean, Don’t Grease: Never put grease in the tracks! It attracts dust and grit, creating a grinding paste. Wipe the inside of the tracks with a rag and automotive brake cleaner or a mild degreaser.
- Check for Dents: Small dents in the vertical track can be tapped out with a rubber mallet. Large creases usually require track replacement.
Upgrading Your Tracks
If you are installing a heavier insulated door or upgrading to a high-lift system for a car stacker, you will likely need new tracks. Heavier doors often use 14-gauge industrial tracks (thicker steel) instead of the standard residential grade to prevent flexing. Ensure your track thickness matches your door weight.
Planning a new setup? Check the dimensions required for different track lifts here: Garage Door Sizes & Dimensions
Frequently Asked Questions
Can I drive my car out if the door is off track?
No. Opening an off-track door further can cause it to collapse or bind further. Leave it alone and call a technician. If the door is stuck open, do not park under it.
How much does track repair cost?
Realignment service typically costs between $100 and $200. If the tracks are bent beyond repair, replacement tracks can run $200 to $400 depending on gauge and length.
Why does my door pop when it opens?
A popping noise often means the track spacing is too tight or too wide, forcing the rollers to bind and then release suddenly. It needs a realignment.
