If your garage door rumbles, squeaks, or sounds like a freight train every time it opens, the culprit is often the garage door rollers. These small wheels are the tires of your garage door system, guiding the heavy panels up and down the tracks. In Dallas, where heat and humidity attack moving parts, builder-grade rollers can wear out in just a few years. This guide explains the difference between nylon vs steel rollers, how to choose the right size, and why upgrading is the single best way to quiet a noisy door.
Types of Garage Door Rollers
Not all rollers are created equal. Most homes are built with cheap plastic or steel rollers that degrade quickly. When replacing them, you have three main options:
1. Plastic Rollers (No Bearings)
These are the standard “builder-grade” rollers found in new construction. They are made of hard black plastic on a simple steel stem with no ball bearings. They are cheap, wear out quickly, and become brittle in Texas heat. Lifespan: 2 to 3 years.
2. Steel Rollers (With Bearings)
Steel wheels with ball bearings (usually 7-ball or 10-ball) last longer than plastic but are much louder. The metal-on-metal contact with the track creates noise and vibration. If the bearings are unsealed, dust and moisture can cause them to seize. Lifespan: 5 to 7 years.
3. Nylon Rollers (The Quiet Upgrade)
The gold standard for residential doors. These feature a steel stem with a durable nylon tire. The nylon absorbs vibration and runs almost silently against the steel track. The best models use sealed 13-ball bearings to prevent dust intrusion. Lifespan: 12 to 15 years.
Ball Bearings: Why the Count Matters
The performance of a roller is defined by its bearings. More balls mean smoother rotation and less friction. A 7-ball bearing roller is better than nothing, but a 13-ball sealed bearing roller is significantly smoother and quieter. The “sealed” aspect is critical in Dallas, as it keeps fine dust and humidity out of the grease, preventing the “wobble” that kills rollers early.
| Roller Material | Bearing Type | Noise Level | Expected Life |
|---|---|---|---|
| Black Plastic | None (sleeve) | Medium | 2-3 Years |
| Steel | 7-Ball or 10-Ball | Loud | 5-7 Years |
| Nylon (White/Black) | 10-Ball or 13-Ball | Very Quiet | 10-15 Years |
Sizing: 2-Inch vs 3-Inch Rollers
Before you buy, you must know your size. The vast majority of residential garage doors use 2-inch rollers (which actually measure about 1.75 inches in diameter to fit inside a 2-inch track). Commercial doors or heavy custom wood doors often use 3-inch rollers. Stem length also varies; standard residential stems are 4 inches long, while heavier doors may require 7-inch stems to pass through double hinges.
If you are unsure about the components of your system, check our diagram for reference: Garage Door Parts Diagram

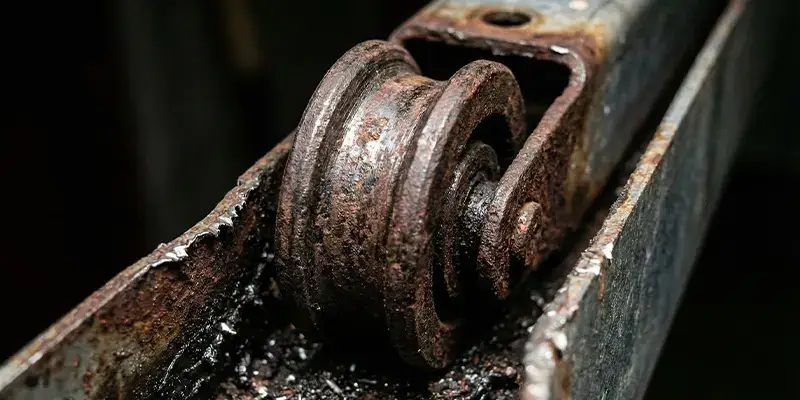

Signs It Is Time to Replace Your Rollers
- Excessive Noise: Grinding, squeaking, or metal-on-metal sounds during travel.
- Vibration: The door shakes or shudders as it moves past track seams.
- Wiggle Test: Gently wiggle the roller stem where it sits in the hinge. If the wheel feels loose or tilts significantly on the stem, the bearing is shot.
- Visual Wear: The wheel looks cracked, chipped, or is separating from the bearing hub.
Safety Warning: The Bottom Bracket
You can safely replace most rollers yourself by removing the hinge bolts one at a time while the door is down. HOWEVER, NEVER remove the bottom roller bracket. The bottom fixture (where the cable attaches) is under extreme tension from the garage door spring. Loosening this bracket can cause the cable to snap or the bracket to fly off, resulting in severe injury. Always call a pro for bottom roller replacement.
Maintenance Tips for Dallas Homeowners
To get the most life out of your new rollers, maintenance is key. Every 6 months, spray the roller bearings (if unsealed) and the roller stems with a silicone-based garage door lubricant. Do not use heavy grease, which traps dirt and grit, turning into an abrasive paste that eats the bearings. Nylon tires generally do not need lubrication on the outside; keep the tracks clean by wiping them with a rag and brake cleaner.
Pairing Rollers with the Right Opener
Upgrading to nylon rollers is the first step to a silent garage. The second step is ensuring your opener isn’t the source of the noise. A belt-drive opener paired with nylon rollers is the ultimate “stealth mode” for attached garages. If you are upgrading your hardware, consider checking your opener health as well.
Frequently Asked Questions
Can I replace steel rollers with nylon ones?
Yes, as long as the size (usually 2-inch) matches. It is the best upgrade you can make for noise reduction.
How much do nylon rollers cost?
A full set of 10 high-quality sealed nylon rollers typically costs between $60 and $100 for parts. Professional installation ensures safety and proper track alignment.
Why did my rollers pop out of the track?
This usually happens due to a bent track, loose track bolts, or a car bumping the door. If a roller pops out, do not force the door; call for service to realign the system safely.
